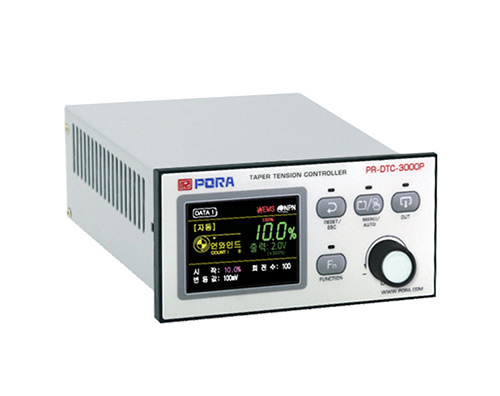

The “PR-DTC-3000P” Tension Controller is a semi-automatic tension control device in the voltage controlled OPEN-LOOP method.
| SPECIFICATIONS | |
| model | PR-DTC-3000P |
| Control method | Voltage calculation method |
| Remote terminal | No remote terminal |
| Compatible sensors |
Use of proximity sensor (PR-12-4DN) Sensor input voltage : 12 ~ 24V Sensor output : DC 200mA (Max.) Sensor detection distance : 4mm ( standard distance ) |
| Input voltage | AC 100 ~ 240V (Free Voltage) |
| Output | DC 0 ~ 24V 3A |
| Weight | 1.3Kg |
